Download the Stackoverflow Archives

• https://archive.org/details/stackexchange
• download
  • stackoverflow.com-Badges.7z
  • stackoverflow.com-Comments.7z
  • stackoverflow.com-PostHistory.7z
  • stackoverflow.com-PostLinks.7z
  • stackoverflow.com-Posts.7z
  • stackoverflow.com-Tags.7z
  • stackoverflow.com-Users.7z
  • stackoverflow.com-Votes.7z

Install p7zip

brew install p7zip

Unzip the Posts, Users and Tags

• 7za -y -oextracted x *Users.7z
• 7za -y -oextracted x *Tags.7z
• 7za -y -oextracted x *Posts.7z

Review the Extracted XML files

• Users.xml – 3.53GB
• Tags.xml – 5MB
• Posts.xml – 74GB

Clone stackoverflow-neo4j

git clone https://github.com/mdamien/stackoverflow-neo4j

Install Python

• brew install python3
• sudo pip3 install xmltodict

Extract the XML files as CSV

python3 to_csv.py extracted
This generates the following files:

Import the Data into Neo4J

• Open Neo4j Desktop

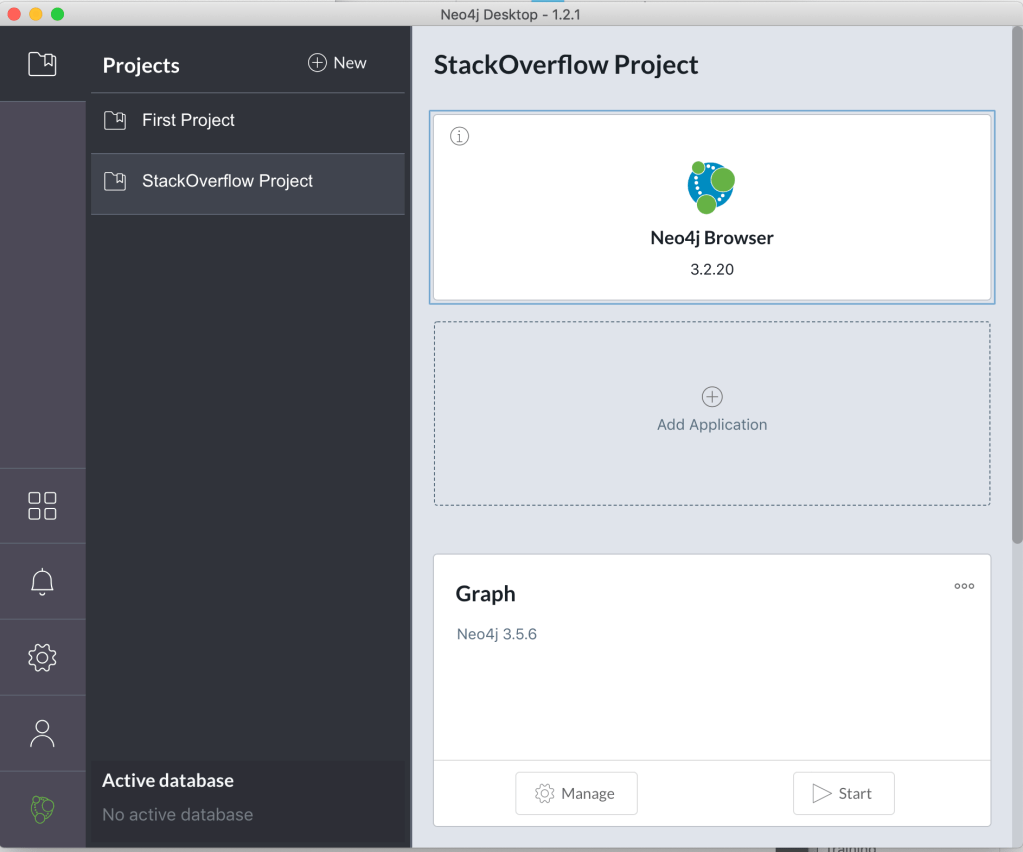

• Create a StackOverflow Project

• Create a Local Graph

• click Manage

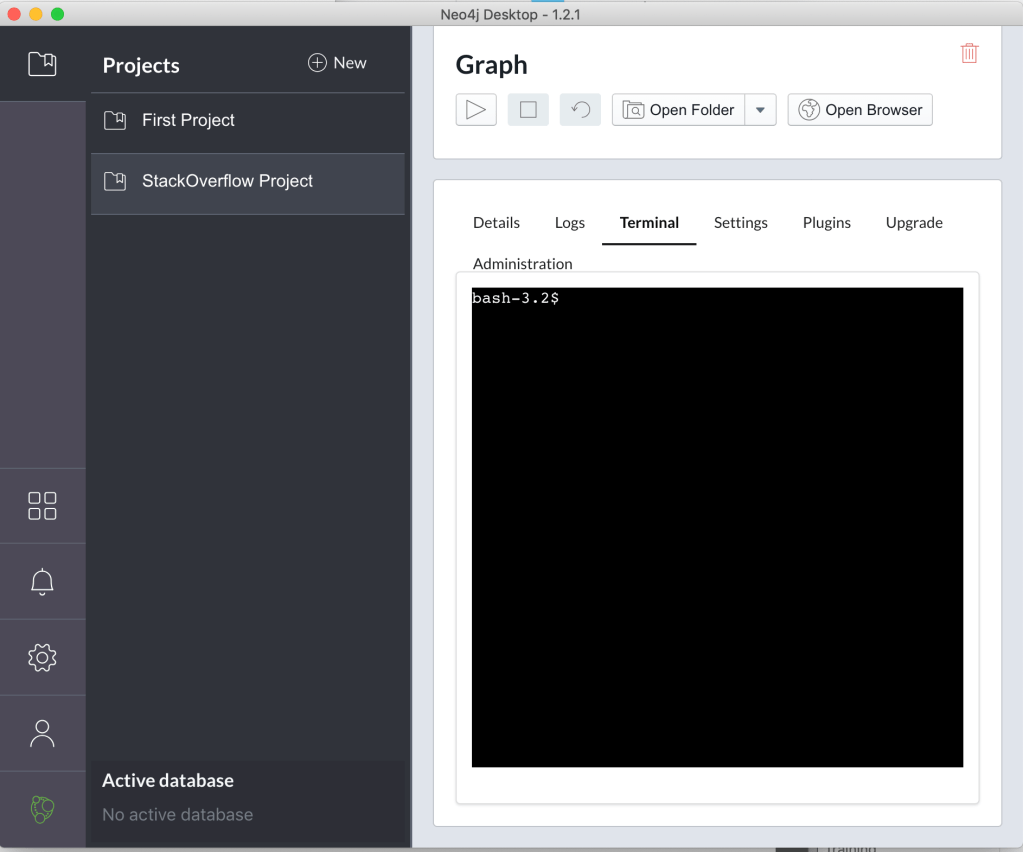

• click Terminal

• set a variable DATA to the path of the generated CSV files
  • export DATA=/Development/Neo4j/StackOverflow/stackoverflow-neo4j/csvs

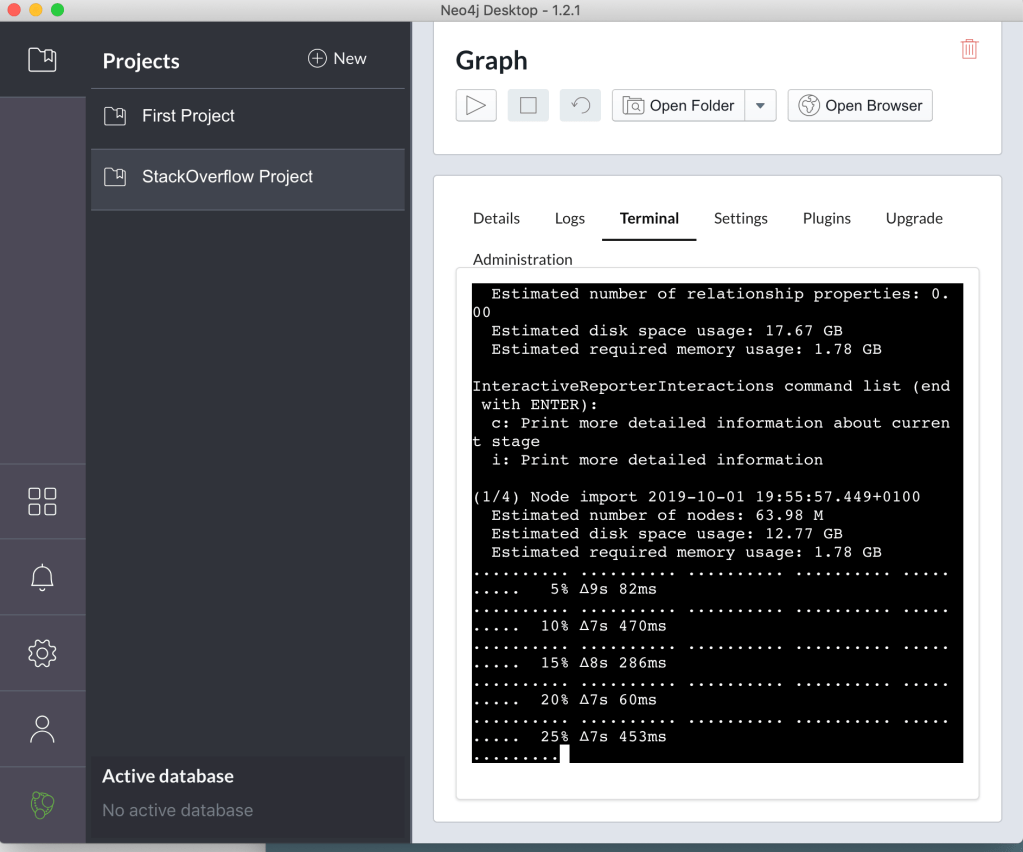

• import the CSV files into a new stackoverflow graph database

./bin/neo4j-admin import \
--mode=csv \
--database=stackoverflow.db \
--id-type string \
--ignore-missing-nodes=true \
--nodes:Post $DATA/posts.csv \
--nodes:User $DATA/users.csv \
--nodes:Tag $DATA/tags.csv \
--relationships:PARENT_OF $DATA/posts_rel.csv \
--relationships:HAS_TAG $DATA/tags_posts_rel.csv \
--relationships:POSTED $DATA/users_posts_rel.csv

Edit Settings

• uncomment #dbms.active_database=graph.db
• rename graph.db to stackoverflow.db

• click Apply

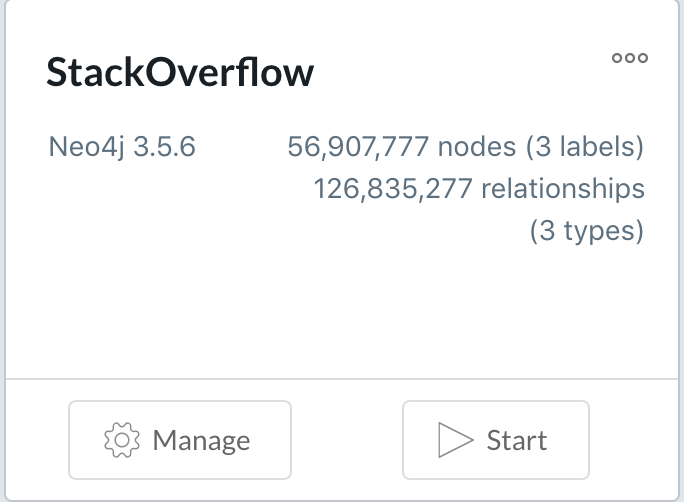

• Restart the database

Open the Browser

• click Open Browser

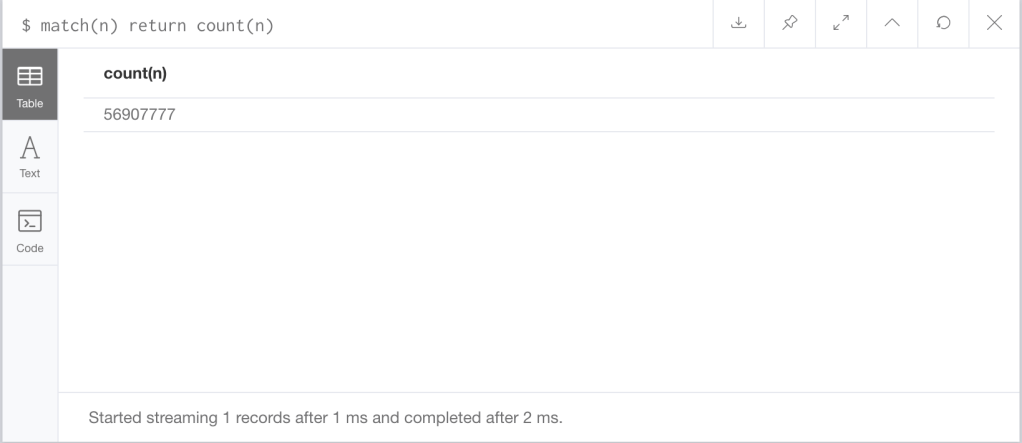

match(n)
return count(n)

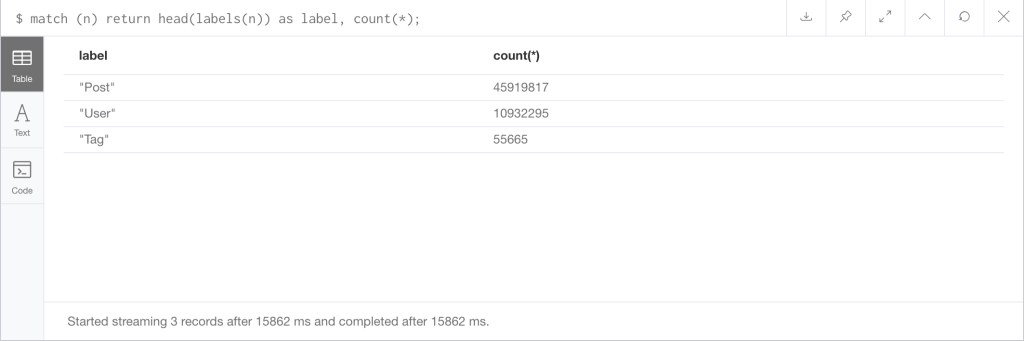

match (n) return head(labels(n)) as label, count(*);

Create Indexes and Constraints

create index on :Post(title);
create index on :Post(createdAt);
create index on :Post(score);
create index on :Post(views);
create index on :Post(favorites);
create index on :Post(answers);
create index on :Post(score);

create index on :User(name);
create index on :User(createdAt);
create index on :User(reputation);
create index on :User(age);

create index on :Tag(count);

create constraint on (t:Tag) assert t.tagId is unique;
create constraint on (u:User) assert u.userId is unique;
create constraint on (p:Post) assert p.postId is unique;

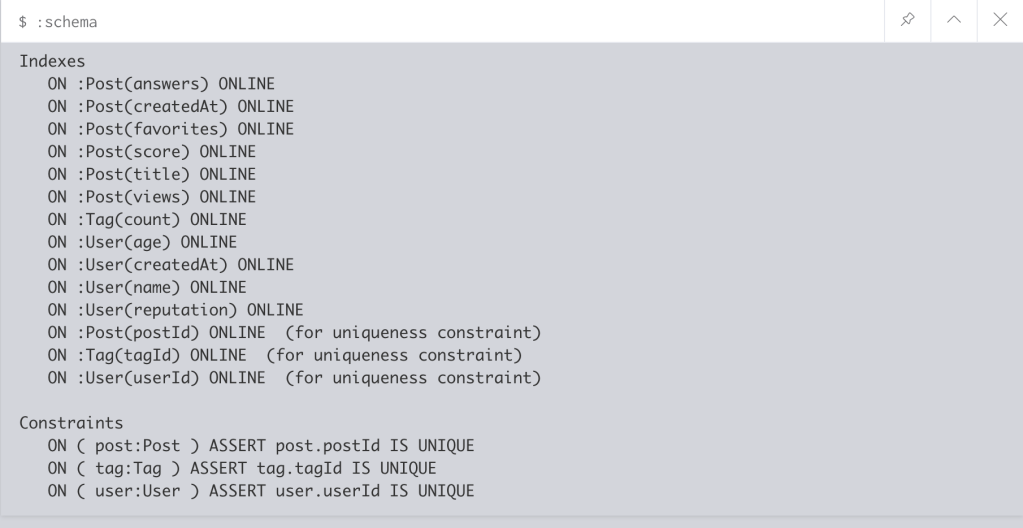

Check Indexes

:schema

Java Questions with Answers

match (tag:Tag{tagId:"java"})<-[r1:HAS_TAG]-(question)-[r2:PARENT_OF]-(answer)
return tag,r1,question,r2,answer
limit 20

match (tag:Tag{tagId:"java"})<-[r1:HAS_TAG]-(question:Post)-[r2:PARENT_OF]-(answer)
return question.title, question.body ,answer.score,answer.body
limit 20
