In this short post, we are going to create a simple restful web service using Apache CXF, Spring, and JBoss AS7.

Create the Project

Using Eclipse / JBoss Developer Studio

  • New -> Maven Project
  • maven-archetype-webapp
  • Group Id: com.skills421.webservices
  • Artifact Id: SimpleCXFRest

The default project structure will be created as follows:

001-simplecxfrest-project

Add Missing Folders and Delete index.jsp

  • Right-click src/main
  • New -> Folder -> java
  • Delete src/main/webapp/index.jsp

002-simplecxfrest-project

Add Maven Dependencies

Edit the pom.xml as follows:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.skills421.cxf</groupId>
	<artifactId>SimpleCXFRest</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>helloweb Maven Webapp</name>
	<url>http://maven.apache.org</url>

	<properties>
		<spring.version>3.1.0.RELEASE</spring.version>
		<cxf.version>2.7.0</cxf.version>
		<junit.version>4.11</junit.version>
	</properties>


	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- CXF -->
		<dependency>
			<groupId>org.apache.cxf</groupId>
			<artifactId>cxf-rt-frontend-jaxrs</artifactId>
			<version>${cxf.version}</version>
		</dependency>

		<!-- JUnit -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>${junit.version}</version>
			<scope>test</scope>
		</dependency>
	</dependencies>
	<build>
		<finalName>SimpleCXFRest</finalName>

		<plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.0</version>
                <configuration>
                    <source>1.6</source>
                    <target>1.6</target>
                </configuration>
            </plugin>
        </plugins>
	</build>
</project>

Update the Project

Right-click on the project and select Maven -> Update Project.

Modify web.xml

Modify web.xml to include the servlets as follows:

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Simple CXF Rest</display-name>

  <!-- Spring -->
  <context-param>
  	<param-name>contextConfigLocation</param-name>
  	<param-value>WEB-INF/beans.xml</param-value>
  </context-param>

  <listener>
  	<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>

  <!-- CXF -->
  <servlet>
  	<servlet-name>CXFServlet</servlet-name>
  	<display-name>CXF Servlet</display-name>
  	<servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
  	<load-on-startup>1</load-on-startup>
  </servlet>

  <servlet-mapping>
  	<servlet-name>CXFServlet</servlet-name>
  	<url-pattern>/rest/*</url-pattern>
  </servlet-mapping>
</web-app>

Create beans.xml

In the WEB-INF folder, create the file beans.xml as follows:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:jaxrs="http://cxf.apache.org/jaxrs"
  xmlns:jaxws="http://cxf.apache.org/jaxws"
  xmlns:context="http://www.springframework.org/schema/context"
  xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://cxf.apache.org/jaxrs
http://cxf.apache.org/schemas/jaxrs.xsd
http://cxf.apache.org/jaxws
http://cxf.apache.org/schemas/jaxws.xsd">

  <import resource="classpath:META-INF/cxf/cxf.xml" />
  <import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

  <context:component-scan base-package="com.skills421.services"/>

  <!-- JAX-RS -->
  <jaxrs:server id="restContainer" address="/">
    <jaxrs:serviceBeans>
      <ref bean="simpleRestService" />
    </jaxrs:serviceBeans>
  </jaxrs:server>
</beans>

<!-- http://cxf.apache.org/docs/jax-rs-and-jax-ws.html -->

Create the Restful Service

In src/main/java create the following class in the correct package

package com.skills421.services;

import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.Produces;

import org.springframework.stereotype.Service;

@Service
@Path("/greet")
public class SimpleRestService
{
	@GET
	@Path("/{name}")
	@Produces("text/plain")
	public String sayHello(@PathParam("name") String name)
	{
		return "Hello "+name;
	}
}

Run the Project

Right-click on the project -> Run As -> Run on Server
select a server to run on, (Tomcat 7 will run without errors).

Test the Service

Open the web browser and enter the following url:
http://localhost:8080/SimpleCXFRest/rest/greet/Jon Doe

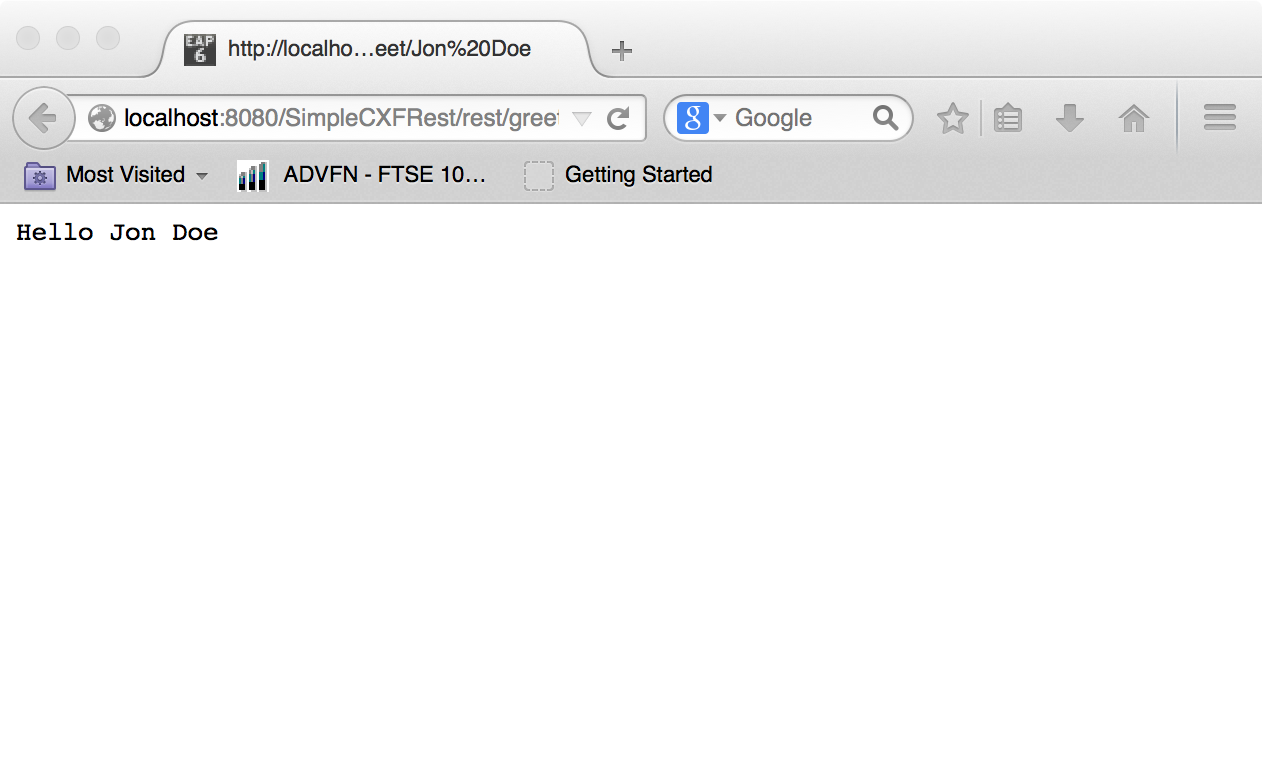

You should see the following:

003-simplecxfrest-browser
